In a single-cycle CPU, operations take only one clock cycle.
Implementation of a Single-Cycle CPU
Let’s only try to implement a small subset of the operations.
Instruction memory
An external memory that stores the instructions
- Higher capacity than the register file
- Byte addressable
Program counter → accesses an address of an instruction
We also need an adder to go to the next instruction
General purpose registers
We have general purpose registers of bits in a register file

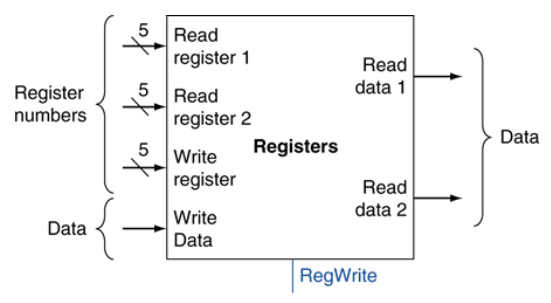

Register are read from/written to by specifying the index of the register
- We need to be able to read 2 registers and write to 1 other at the same time (R-format instructions)
We also need a signal if we want to write to a register
ALU
The unit that does the arithmetic operations
It takes two -bit inputs, and produces a result of -bits, as well as some flags
- A flag could per example be whether the output is
The ALU operation signal determines which operation to do, and is over bits.
Data memory load/store
We need to be able to write to larger memory than the register file
We have:
- A -bit address input
- A -bit write data input
- A -bit read data output
- -bit signal to say that we want to read
- -bit signal to say that we want to write
We need to be able to generate immediate for load and store offsets, as operations only have -bits for the immediates
Branch support
We have instructions that allow to branch/jump to other sections of the instructions
We can use the previously introduced zero flag to check for equality, and branch accordingly.
Control signals

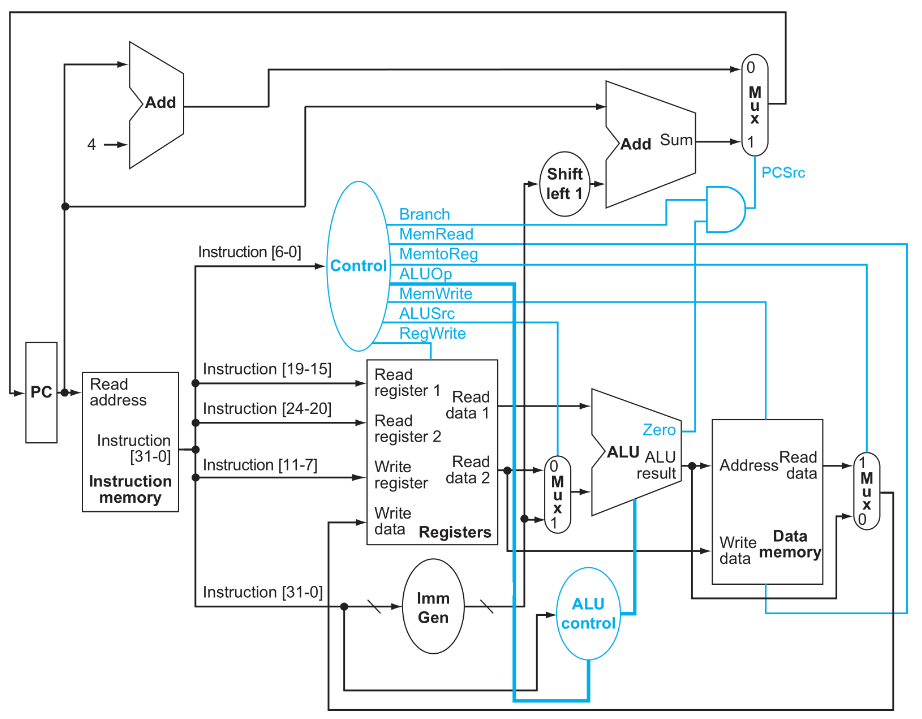

The missing signals (in blue in the previous schematics) are defined by a control unit: It determines what instruction to use.
The missing signals are:
| Regwrite | ALUSrc | PCSrc | MemRead | MemWrite | MemtoReg |
|---|---|---|---|---|---|
| The register assigns a value to a register | Determines whether the ALU takes a register or an immediate | Determines how to increment the program counter | Whether to read a value from memory | Whether to write a value to memory | Whether to load a value from memory |
Per example, to define what value the program counter increases by, we have an AND gate between the mux of the operation (to determine if the instruction is branch) and the ALU’s zero flag
TLDR
